Sku : 84818030

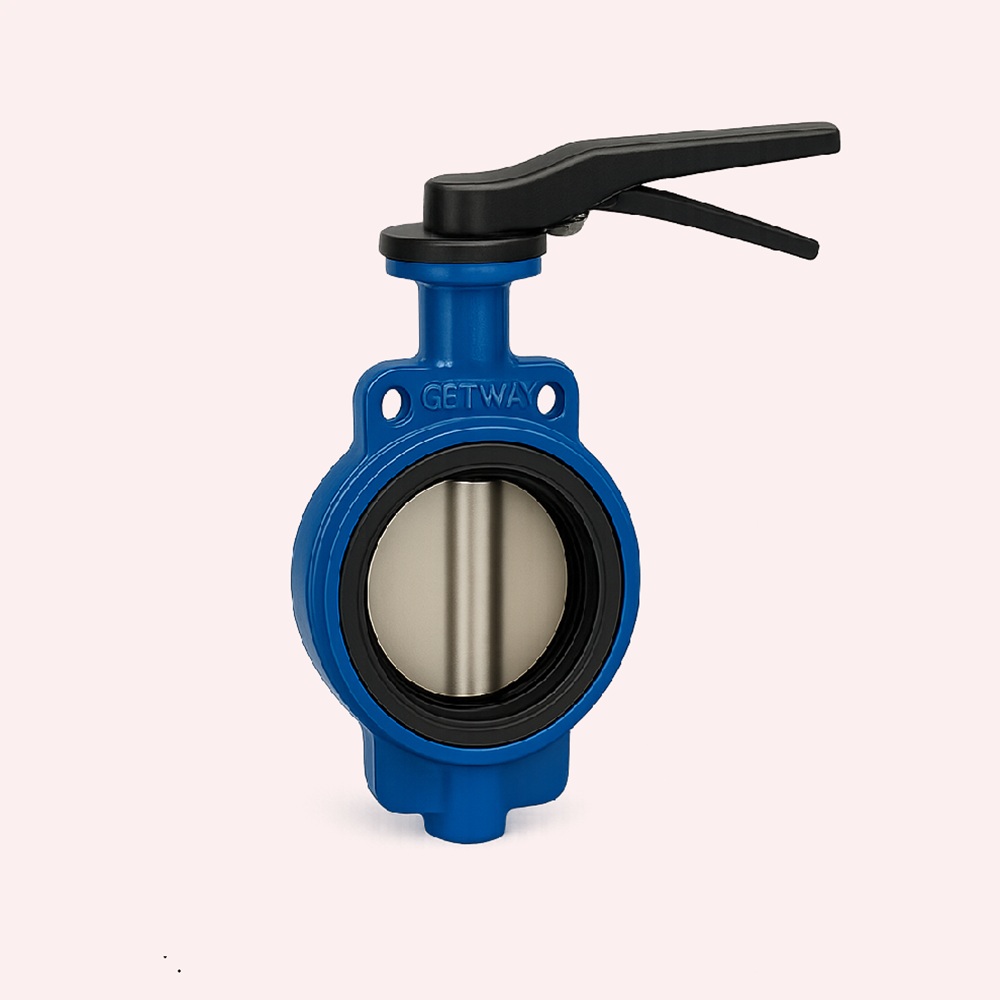

Wafer Type Butterfly Valves
We are a leading Wafer Type Butterfly Valve Manufacturer in India supplying PN16 and Class 150 industrial butterfly valves across India.
Technical Specifications
Valve Type : Wafer Type Butterfly Valve
Design Standard : API 609 / BS 5155
Face to Face : EN 558 Series 20
Pressure Rating : PN10 / PN16 / Class 150
Size Range : 50 mm to 600 mm
End Connection : Wafer Type
Mounting : ISO 5211
Operation : Lever / Gear / Pneumatic / Electric
Material of Construction
Body : Cast Iron / Ductile Iron / Carbon Steel / SS 304 / SS 316
Disc : SG Iron / SS 304 / SS 316
Stem : SS 410 / SS 304 / SS 316
Seat : EPDM / NBR / PTFE
Pressure & Temperature Rating
Seat Pressure & Temperature
EPDM : PN16 -10°C to +120°C
NBR : PN16 -10°C to +90°C
PTFE : Class 150 -20°C to +180°C
Dimension Chart (Wafer Type – PN16)
DN L (Face to Face) D H Weight (Approx.)
50 43 mm 165 mm 180 mm 4 kg
80 46 mm 200 mm 200 mm 6 kg
100 52 mm 220 mm 220 mm 8 kg
150 56 mm 285 mm 260 mm 14 kg
200 60 mm 340 mm 300 mm 22 kg
Industrial Wafer Type Butterfly Valve Manufacturer in India
We are a leading Wafer Type Butterfly Valve Manufacturer in India offering PN16 and Class 150 industrial butterfly valves suitable for water treatment plants, chemical industries and industrial pipeline systems. Our CI and Stainless Steel wafer butterfly valves are manufactured as per API 609 standards with strict quality control.
Applications
- Water Treatment Plants
- Effluent Treatment Plants
- Power Plants
- Chemical Industry
- Fire Fighting Lines
- HVAC Systems
