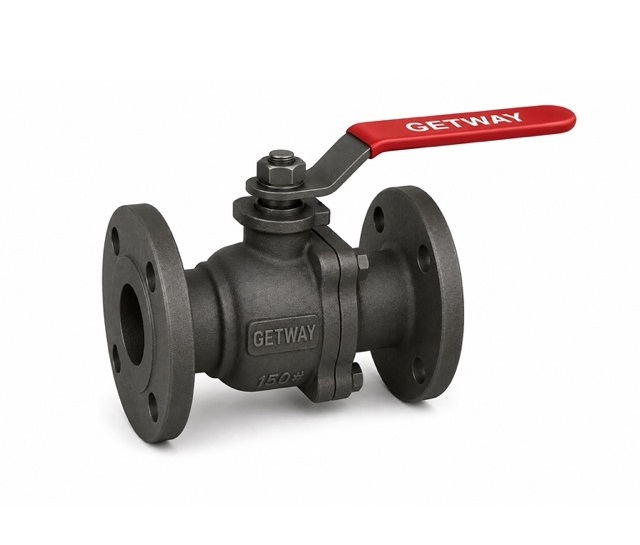

Two Piece Flanged End Ball Valve Class 150 Manufacturer in India
Getway Valves is a leading Two Piece Flanged End Ball Valve Class 150 Manufacturer in India offering high-quality industrial ball valves for water, oil, gas, steam and chemical applications. Manufactured in WCB, SS304 and SS316 materials with ANSI B16.5 flanged end connections, these valves provide reliable shut-off performance, low pressure drop and long service life.
HSN Code : 84818030
Two Piece Flanged End Ball Valve Class 150
Valve Type – Two Piece Flanged End Ball Valve
Pressure Class – Class 150
Size Range – 15 NB to 300 NB
End Connection – ANSI B16.5 Flanged RF
Body Material – WCB / SS304 / SS316 / CF8 / CF8M
Seat Material – PTFE / RPTFE
Operation – Lever Operated / Gear Operated
Testing Standard – API 598
Design Standard – API 608
Application Media – Water, Oil, Gas, Steam, Air, Chemical
Category
1. Side Piece – Cast Iron (IS 210 Gr. FG 200) / SS304 (CF8) / SS316 (CF8M)
2. Body – Cast Iron (IS 210 Gr. FG 200) / SS304 (CF8) / SS316 (CF8M)
3. Ball – SS202 / SS304 / SS316
4. Seat – PTFE (Teflon)
5. Stem – Mild Steel / SS202 / SS304 / SS316
6. Interlock Nut – Mild Steel / Stainless Steel
7. Lever – Mild Steel / Stainless Steel
About Two Piece Flanged End Ball Valve Class 150
A Two Piece Flanged End Ball Valve Class 150 is a quarter-turn valve designed for reliable flow control and shut-off applications in industrial piping systems. Its two-piece body construction provides strength, durability and easy maintenance, while ANSI Class 150 flanged end connections ensure secure installation and leak-proof performance. These valves are widely used for handling water, oil, gas, steam, air and chemical media in refineries, power plants, water treatment facilities and process industries.
Applications of Two Piece Flanged End Ball Valve Class 150
- Oil & Gas Industries
- Petrochemical Plants
- Refineries
- Chemical Processing Plants
- Power Plants
- Water Treatment Plants
- Steam Distribution Systems
- Industrial Utility Services
Features of Three Piece Screwed End Ball Valve
- Full Bore Design
- Heavy Duty Two Piece Construction
- ANSI B16.5 Flanged Ends
- Bubble Tight Shut-Off
- PTFE Soft Seated Design
- Low Pressure Drop
- Corrosion Resistant Materials
- Long Service Life
Why Choose Getway Valves?
Getway Valves Private Limited is a trusted manufacturer and supplier of industrial ball valves in India. We manufacture high-quality Two Piece Flanged End Ball Valve Class 150 using premium-grade raw materials and strict quality control procedures. Our valves are designed to deliver reliable performance, long service life and leak-proof operation for demanding industrial applications.
✔ ISO 9001:2015 Certified Company
✔ Premium Quality Raw Materials
✔ API Standard Manufacturing & Testing
✔ Competitive Pricing
✔ Timely Delivery Across India
✔ Technical Support & Custom Solutions
Frequently Asked Questions
What is a Two Piece Flanged End Ball Valve Class 150?
A Two Piece Flanged End Ball Valve Class 150 is a quarter-turn valve designed for flow control and shut-off applications with ANSI Class 150 pressure rating and flanged end connections.
What materials are available?
These valves are available in WCB, SS304, SS316, CF8 and CF8M materials.
What pressure class is available?
The valve is designed for ANSI Class 150 pressure rating.
What end connection is provided?
ANSI B16.5 RF flanged end connections are provided.
Where are these valves used?
They are widely used in oil & gas, chemical, water treatment, power plant and industrial process applications.
What testing standard is followed?
All valves are tested as per API 598 standards before dispatch.
Can these valves be used for steam applications?
Yes, depending on operating pressure and temperature conditions.
Why choose Getway Valves?
Getway Valves offers high-quality industrial valves, competitive pricing, technical support and timely delivery across India.
