Lug Type Butterfly Valve Manufacturer in India
Getway Valves is a leading Lug Type Butterfly Valve Manufacturer in India offering high-performance butterfly valves for water, air, oil, gas, steam and chemical applications. Manufactured in Cast Iron, Ductile Iron, WCB, SS304 and SS316 materials, these valves provide reliable shut-off performance, easy installation and long service life.
HSN Code : 84818030
Lug Type Butterfly Valve
Valve Type: Lug Type Butterfly Valve
Size Range: 50 NB to 1200 NB
Pressure Rating: PN10 / PN16 / Class 150
End Connection: Lug Type
Body Material: CI / DI / WCB / SS304 / SS316
Disc Material: DI / SS304 / SS316 / CF8 / CF8M
Seat Material: EPDM / NBR / PTFE
Operation: Lever Operated / Gear Operated
Testing Standard: API 598
Design Standard: API 609
Application Media: Water, Air, Oil, Gas, Chemical
Category

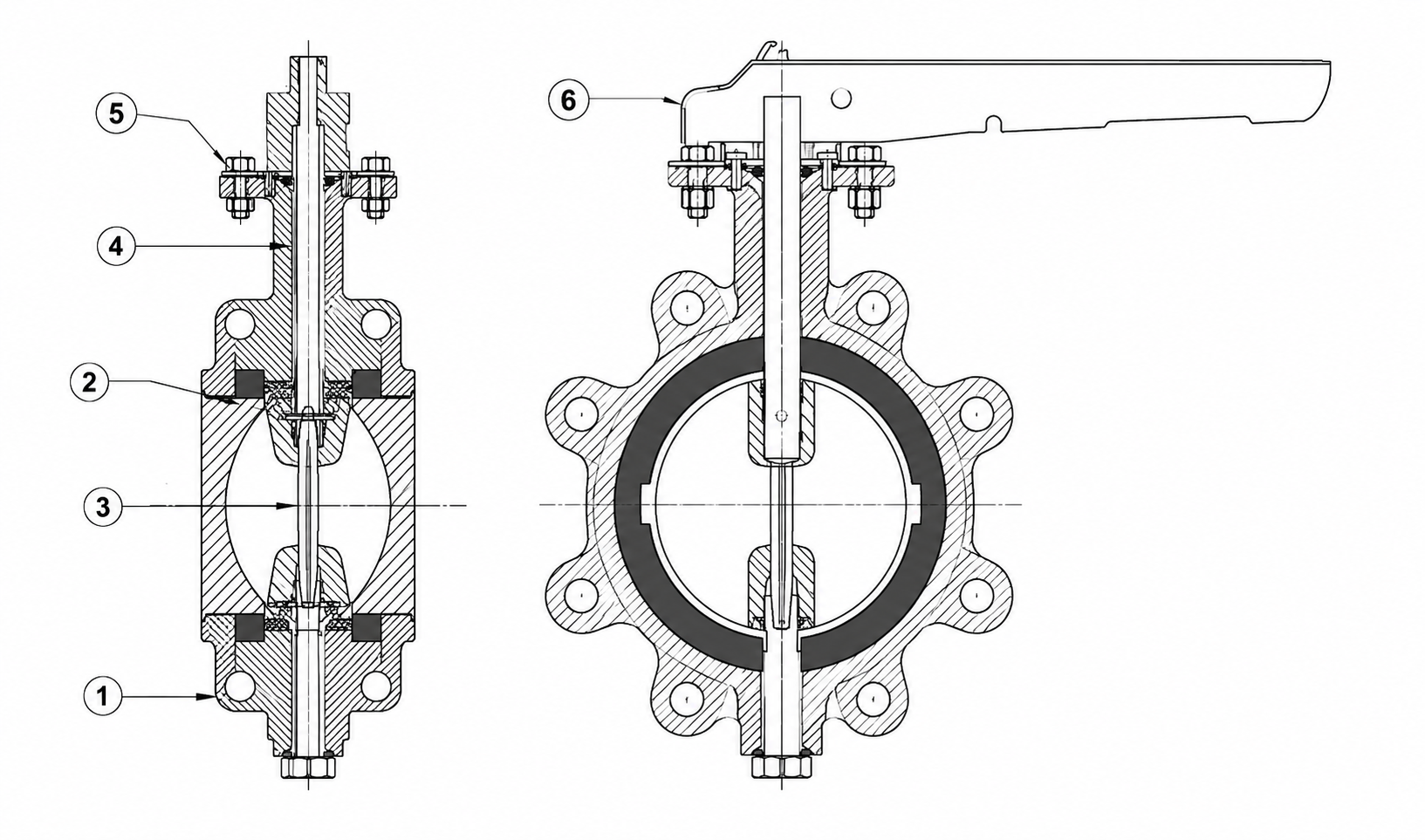

1. Body: Cast Iron (IS 210 Gr. FG220) / Ductile Iron / WCB / SS304 / SS316
2. Rubber Sleeve: Nitrile / EPDM / Neoprene / Silicon / PTFE
3. Disc: Cast Iron / Ductile Iron / SS304 / SS316 / CF8 / CF8M
4. Spindle: SS410 / SS304 / SS316
5. O-Ring: Nitrile / EPDM
6. Flow Control Lever: M.S. Fabricated / Ductile Iron
About Lug Type Butterfly Valve
A Lug Type Butterfly Valve is a quarter-turn valve designed for reliable flow control and shut-off applications in industrial piping systems. The lugged body design features threaded inserts that allow the valve to be installed between flanges using individual bolts on both sides. This design enables dead-end service and simplifies maintenance without disturbing the entire pipeline. Lug Type Butterfly Valves are widely used in water treatment, chemical processing, HVAC, oil & gas and industrial utility systems
Applications of Lug Type Butterfly Valve
- Water Treatment Plants
- Chemical Processing Industries
- HVAC Systems
- Oil & Gas Industries
- Pharmaceutical Industries
- Food & Beverage Plants
- Fire Fighting Systems
- Industrial Utility Services
Features of Lug Type Butterfly Valve
- Heavy Duty Lugged Body Design
- Suitable for Dead-End Service
- Bubble Tight Shut-Off
- Low Pressure Drop
- Corrosion Resistant Materials
- Easy Installation & Maintenance
- Lever & Gear Operated Options
- Long Service Life
- Low Maintenance Requirement
Why Choose Getway Valves?
Getway Valves Private Limited is a trusted manufacturer and supplier of industrial butterfly valves in India. Our Lug Type Butterfly Valves are manufactured using premium-grade raw materials and tested as per international standards to ensure reliable performance and long service life.
✔ ISO 9001:2015 Certified Company
✔ Premium Quality Raw Materials
✔ API Standard Manufacturing & Testing
✔ Competitive Pricing
✔ Timely Delivery Across India
✔ Technical Support & Custom Solutions
✔ Strict Quality Inspection Before Dispatch
✔ Wide Range of Industrial Valves
Frequently Asked Questions
What is a Wafer Type Butterfly Valve?
A Lug Type Butterfly Valve is a quarter-turn valve designed for flow control applications with a lugged body construction that allows installation between flanges using individual bolts.
What materials are available?
These valves are available in WCB, SS304, SS316, CF8 and CF8M materials.
What materials are available?
These valves are available in Cast Iron, Ductile Iron, WCB, SS304 and SS316 materials.
What pressure ratings are available?
PN10, PN16 and Class 150 pressure ratings are available.
What seat materials are available?
EPDM, NBR and PTFE seat options are available.
What testing standard is followed?
The valves are manufactured as per API 609 and tested according to API 598 standards
Where are these valves used?
They are widely used in water treatment, HVAC, chemical processing, pharmaceutical and industrial utility applications
Why choose Getway Valves?
Getway Valves offers premium quality butterfly valves, competitive pricing, technical support and timely delivery across India. delivery across India.
