Three Piece Flanged End Ball Valve Class 300 Manufacturer in India
Getway Valves is a leading Three Piece Flanged End Ball Valve Class 300 Manufacturer in India offering high-performance industrial ball valves for high-pressure water, oil, gas, steam and chemical applications. Manufactured in WCB, SS304 and SS316 materials with ANSI B16.5 Class 300 flanged end connections, these valves provide bubble-tight shut-off, easy inline maintenance and long service life
HSN Code : 84818030
Three Piece Flanged End Ball Valve Class 300
Valve Type – Three Piece Flanged End Ball Valve
Pressure Class – Class 150
Size Range – 15 NB to 300 NB
End Connection – ANSI B16.5 Flanged RF
Body Material – WCB / SS304 / SS316 / CF8 / CF8M
Seat Material – PTFE / RPTFE
Operation – Lever Operated / Gear Operated
Testing Standard – API 598
Design Standard – API 608
Application Media – Water, Oil, Gas, Steam, Air, Chemical

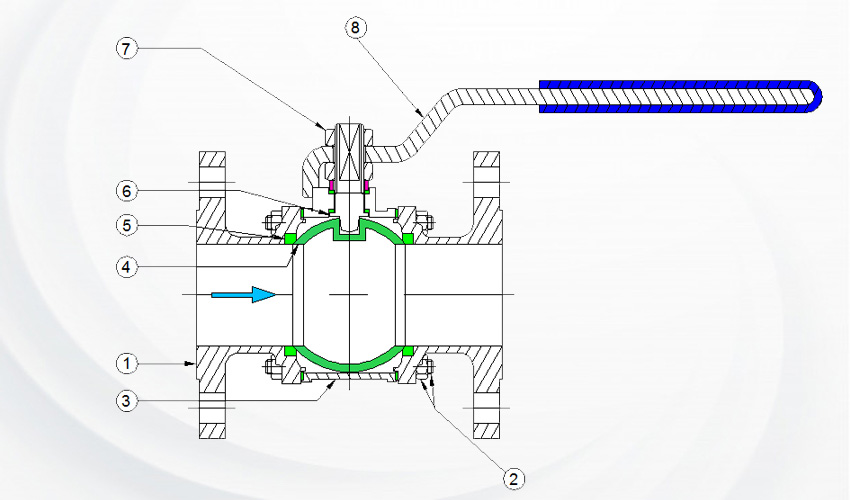

Category
- Side Piece – Cast Iron /Wcb/ SS304 (CF8) / SS316 (CF8M)
- Stud & Nut – ASTM A193 B7 / ASTM A194 2H / SS304 / SS316
- Body – Cast Iron (IS 210 Gr. FG 200) / SS304 (CF8) / SS316 (CF8M)
- Ball – SS202 / SS304 / SS316
- Seat – PTFE (Teflon) / RPTFE
- Stem – Mild Steel / SS202 / SS304 / SS316
- Interlock Nut – Mild Steel / Stainless Steel
- Lever – Mild Steel / Stainless Steel
About Three Piece Flanged End Ball Valve Class 300
A Three Piece Flanged End Ball Valve Class 300 is a heavy-duty quarter-turn valve designed for reliable shut-off and flow control in high-pressure industrial piping systems. Its three-piece body construction allows easy inspection, cleaning and replacement of internal components without removing the valve from the pipeline. ANSI Class 300 flanged end connections provide secure installation, while the full bore design ensures smooth flow with minimal pressure loss. These valves are widely used in oil & gas, petrochemical, chemical processing, power generation and industrial utility applications.
Applications of Three Piece Screwed End Ball Valve
- Oil & Gas Industries
- Refineries
- Chemical Processing Plants
- Water Treatment Plants
- Power Plants
- Pharmaceutical Industries
- HVAC Systems
- Industrial Utility Services
Features of Three Piece Screwed End Ball Valve
- Full Bore Design
- Maintenance Friendly Three Piece Construction
- ANSI B16.5 Flanged Ends
- Bubble Tight Shut-Off
- PTFE Soft Seated Design
- Low Pressure Drop
- Corrosion Resistant Materials
- Easy Inline Maintenance
- Long Service Life
Why Choose Getway Valves?
Getway Valves Private Limited is a trusted manufacturer and supplier of industrial ball valves in India. We manufacture high-quality Three Piece Flanged End Ball Valve Class 150 using premium-grade raw materials and strict quality control procedures. Our valves are designed to deliver reliable performance, long service life and leak-proof operation for demanding industrial applications.
✔ ISO 9001:2015 Certified Company
✔ Premium Quality Raw Materials
✔ API Standard Manufacturing & Testing
✔ Competitive Pricing
✔ Timely Delivery Across India
✔ Technical Support & Custom Solutions
Frequently Asked Questions
What is a Three Piece Flanged End Ball Valve Class 300?
A Three Piece Flanged End Ball Valve Class 300 is a quarter-turn valve designed for flow control and shut-off applications with ANSI Class 300 pressure rating and flanged end connections.
What materials are available?
These valves are available in WCB, SS304, SS316, CF8 and CF8M materials.
What pressure class is available?
The valve is designed for ANSI Class 300 pressure rating.
What end connection is provided?
ANSI B16.5 RF flanged end connections are provided.
Where are these valves used?
They are widely used in oil & gas, chemical, water treatment, power plant and industrial process applications.
What testing standard is followed?
All valves are tested as per API 598 standards before dispatch.
Can these valves be used for steam applications?
Yes, depending on operating pressure and temperature conditions.
Why choose Getway Valves?
Getway Valves offers high-quality industrial valves, competitive pricing, technical support and timely delivery across India.
